Description
Smart 6 Zone WiFi Irrigation or Sprinkler Controller, Tuya SmartLife – latest version 3.
This Smart WiFi automatic sprinkler controller offers you the very latest tech management to water and control any lawn, flower bed or crop etc. The Smart controller is suitable for both new installations as well as a replacement/upgrade to any existing system as Hunter, Orbit, K-rain, Rain Bird (any 24VAC solenoid valve system). The entire system is programmed via the free Tuya Smartlife app on your phone and is controlled from basically anywhere on the planet.
Smart Home enables the remote control of any devices or home appliances via WiFi through the Tuya application SmartLife application installed on your phone or tablet (Android or IOS). Simply ‘Wire, Configure and Play’. Home Automation has never been this Smart, Simple and Affordable. Tuya offers the fastest switching, most stable platform and widest range of ever growing Smart Products. Supports Alexa, Google Home and IFTTT.
Smart WiFi Irrigation Sprinkler Controller Features:
- Full control the off the start run and end times, days of the week etc.
- Manual override ON/OFF via units front panel
- Manual override ON/OFF via the SmartLife App (cell phone)
- The Smart system has numerous benefits over the conventional systems such as ‘never loosing its programming’ or requiring a ‘backup battery’.

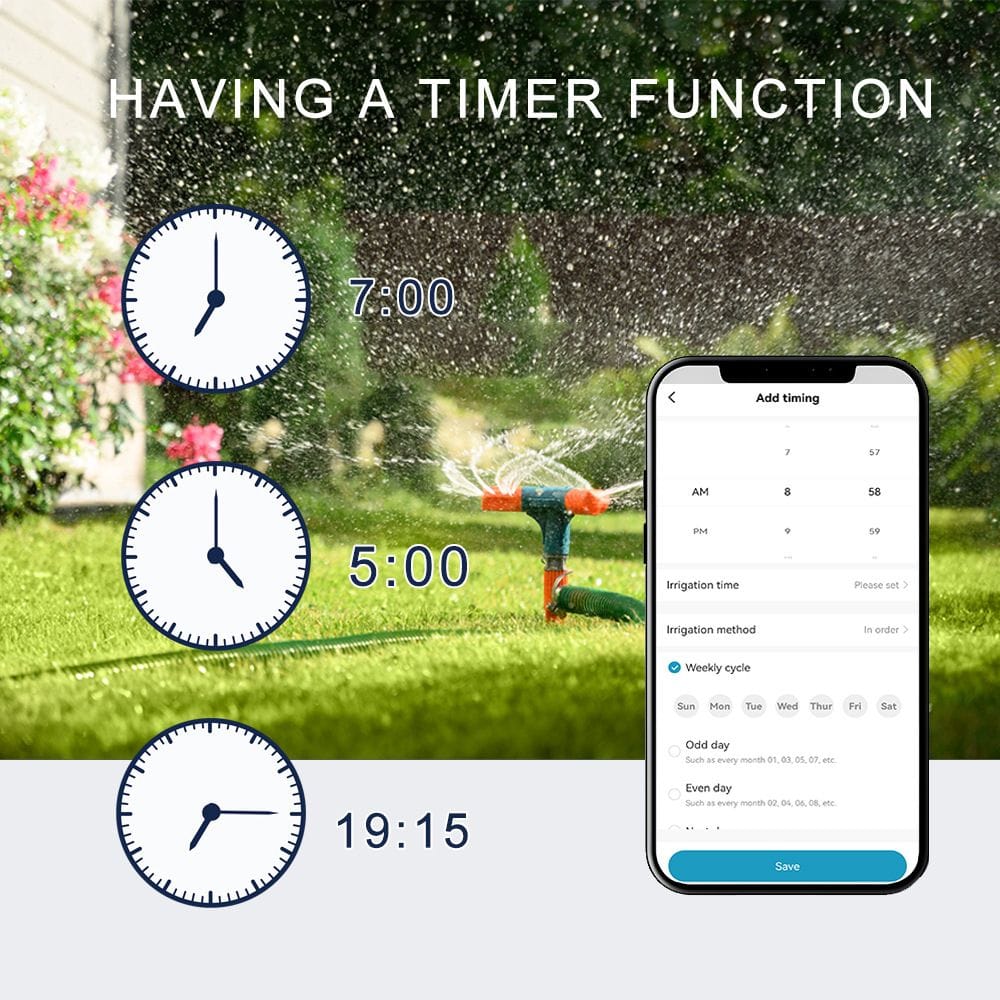

- Small and Compact design. Ease of Installation. 0.7sec On or Off (simulates an existing remote control)Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and AI (Artificial Intelligence) platforms such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single Stable Platform been the Smart Life app from Tuya. We ONLY sell TUYA so all products use the SmartLife app. How do I get started [click here]
- Available in 4 Zone, 6 Zone and 8 Zone models, for a 12 Zone you will for example require one of each. Unlimited number of units can be added as per your requirement.
Optional Items Important:

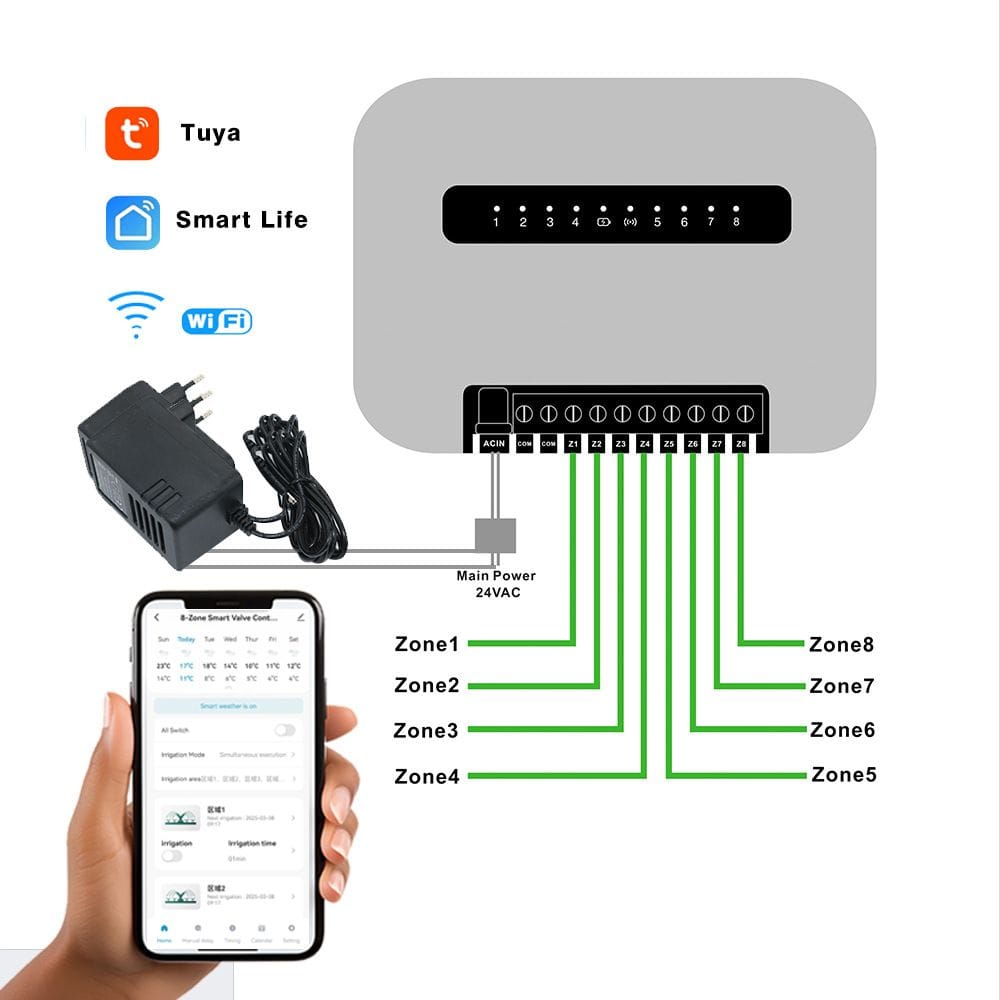

- Transformer 24V AC [click here to buy] is required for all new installations (power the controller & activate your valves). A new transformer however may not be needed for a ‘Smart upgrade’ to an existing system, meaning you already own a suitable transformer. The 24V AC connects to the controller via 5.5mm connector known as a ‘DC plug’ – we included one with a terminal block (just in case your existing transformer’s connection is not 5.5mm).
- Solenoid Valves 24VAC Need Irrigation & Sprinkler Control Valves. K-Rain best price & quality – USA to buy [click here]. Required for all new installations or simply to upgrade your current ‘problematic’ solenoid valves to much better quality ones.
- Connect the controller to the solenoid valves via our Outdoor UV protected CAT5e Cable [click here]
- Rain Adjustment: you can add a Smart Water/Flood detector to indicate rain [click here]. The sprinklers can then be adjusted as required, for example reduce by 50% or switch OFF for next 3 days etc.
With so many smart home platforms available, WHY TUYA [click here]. Great way to make any appliance or device ‘Smart’.
Specification:

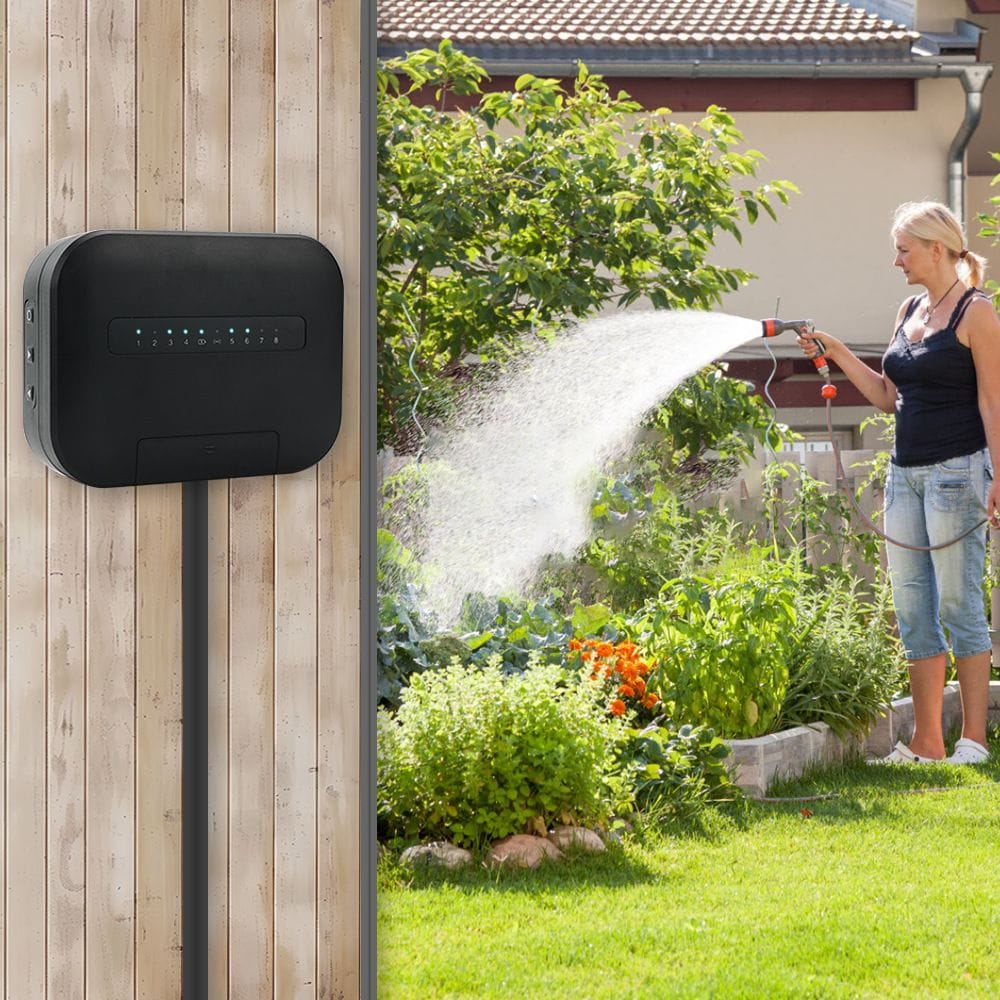

Note: for outdoor use mount inside a suitable IP65 or similar enclosure
| Work Voltage | 24VAC Terminal Block |
| Relay Opening time | 0.7 seconds |
| Switching Load | AC24V/1000mA |
| Switch mode | Switch/Mobile phone |
| WiFi Standards | IEEE 802.11 b/n/g 2.4G Hz |
| Support Voice Control | Work with Amazon Alexa/Google Assistance/IFTTT |
| Operation Temp. | –10°C to +55°C |
| Humidity | 5%–95% RH, non-condensing |
| Dimension | 15*15*4cm |
| Weight | 100gr |

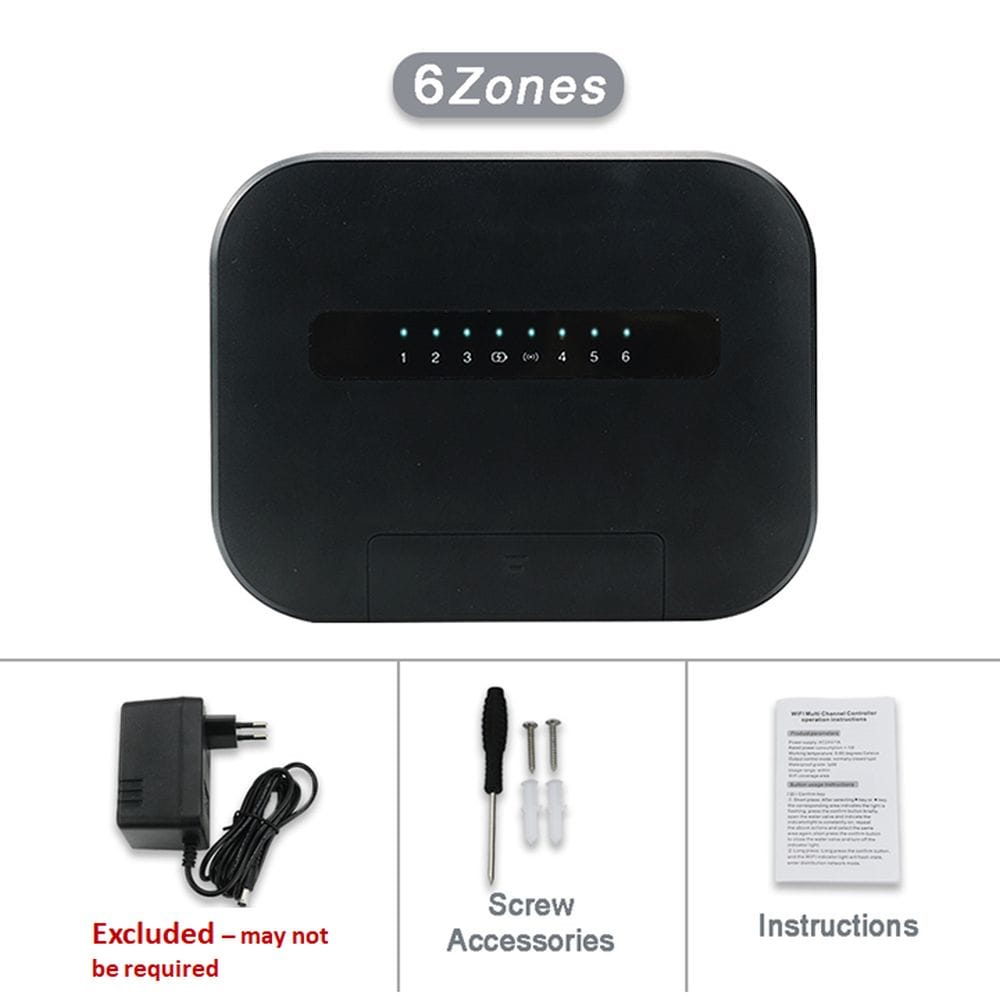

What’s In the Box?
- 1x 6 Zone Smart WiFi Controller
- 1x User Manual
- 1x Transformer 24V AC (Optional)
